Netbell-KL-E2M High Volume Web-based Break Bell System
Alternative Views:

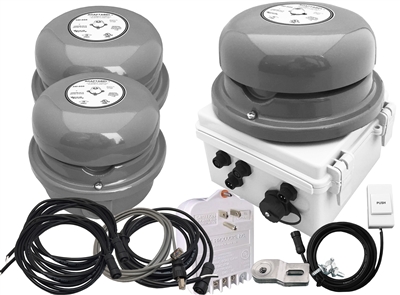

The Netbell-KL-E2M is a compact, self-contained and high-volume web-based break bell system
for schools & factories that want a fully automated web-based timed alert system for signaling
shift changes, general alarm, and breaks in areas of high ambient noise levels. This bell kit is loud
enough to be heard over equipment and won’t have the same sound as some industrial
equipment or a fire alarm.
The system is built on a TCP/IP platform with a built-in web server, which allows users to access,
control, and schedule the bell accurately and effectively using an internet connection from
anywhere, no additional software or designated computer required. The Netbell™-KL-E2M
features a high quality 6 inch high output bell (102dBa@1m and 92dBa @10', 90dBa@30’ from
our in-house testing) and a completely wired web controller installed within a NEMA-rated box;
all software and mounting hardware required for installation and operation is included. With the
easy-to-use bell schedule software, users can easily add event schedules with different ringing
duration for different event or import/export their existing data using a simple text format.
There are two external bell kits included in the system with a CP connector that provides quick
connect/disconnect the external bells to the Netbell-KL-E2M server to cover a larger area. To
add the external bell to the Netbell server is incredibly easy, just connect the external bell kit
with the provided bell cable, plug the bell cable to the Netbell external bell CP connector, you
are all set. The external bells can be connected at 250 feet away with 18AWG cable (500 feet
with 16AWG cable) to the server. With the external push button switch you can ring the bells
manually in the events of emergency.
List Price: $1,524.00
Our Price: $1,447.00
Sale Price: $
1,447.00
Savings: $77.00
Availability::
Usually Ships in 24 to 48 Hours
Product Code:
01-910-00051
Qty:
Description
Technical Specs
Linortek NETBELL-KL-E2M Web-Based Automatic All-In-One Extra Loud School Factory
Warehouse Break Bell System Programmable Bell Timer Controller w/ Two External Bells and
One Push Button Switch to Ring Bell Manually for Emergency.
• 10M/100M RJ45 Internet interface with connection and activity LEDs
• Input Power: 24VAC
• 6” high volume bell, 24VAC 50/60Hz, Decibels: 92dBa @ 10', 102dBa @ 1m
• Enclosure: ABS, IP67 /150mm x 150mm x 90mm (Mounting hardware supplied)
• Accessories: 3 Meters Power Cable/3 Meters RJ45 Network Cable/3 Meters Input Cable
• Push button switch: NC/NO 79MM*45MM*21MM, 3 Meters Input Cable
• External Bell: 6" Inch 24VAC with weatherproof backbox
• On board temperature sensor and input voltage sensor
• Working Temperature from 0 to +70 Celsius
• Storage Temperature from -40 to +125 Celsius
• Humidity from 10% to 80% non-condensing
• Supported Protocols: HTTP/SMTP/SNTP
Features
• COMPACT AND SELF-CONTAINED: All-in-one automatic bell system with the hardware and
software you need to control your timed alert system. No extra software or designated
computer required. Adding schedules from any computer on your network without having to go
through the firewall
• FULLY PROGRAMMABLE: Up to 500 programmable event schedules, each event can be set to a
different duration for different break time, the bell schedules can be imported and exported
from existing data in .txt format
• EASY TO USE: It’s ready to go out of the box, you need only connect the unit to power and the
existing network with the provided cables, access the Netbell web interface to setup and add
schedules with a standard web browser over the network
• EASY TO INSTALL: Use as either a network or a standalone device, connect to network or directly
to computer for initial setup then it will work as scheduled. With the built-in Real Time Clock and
user settable NTP server, you can accurate control of when the bells ring (HH:MM:SS, SUNDAYSATURDAY)
or pull the time from your existing NTP server
• EASY TO EXPAND: Two additional relay outputs with a CP connector that provides quick
connect/disconnect two certified bells if you have larger areas need to be covered (external bells
are not included, purchased separately). With the built-in remote function, you can ring multiple
bells at multiple buildings cross a network from one simple web interface without the need of
hard-wiring the bells to a central control station (a slave controller Koda 100 will be needed for
the remote locations to receive signals).
