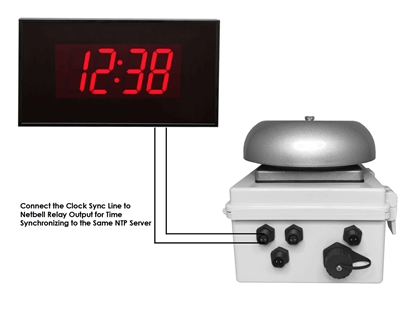

Bring precision and effortless automation to your daily schedule with the Netbell-K-C system from Time Clocks Unlimited, LLC.
• COMPACT AND SELF-CONTAINED: Network enabled, all-in-one automatic bell clock system with the hardware and software for installation and operation, no extra software or designated computer required
• FULLY PROGRAMMABLE: Up to 500 programmable event schedules, each event can be set to a different duration for different break time, each bell can share the same schedules or add different schedules
This all-in-one, network-based solution is designed to completely automate your facility's time-based alerts. As a complete break bell system, it allows you to easily program every work bell for shifts, lunches, and breaks using a web browser from any computer on your network. This highly reliable programmable bell system is one of the most effective break time solutions you can implement. It's best for facilities like manufacturing plants, warehouses, distribution centers, and schools that require a dependable, synchronized schedule to maximize productivity and keep everyone on the same page. The included digital clock ensures a clear, unified time reference for your entire team, eliminating confusion and keeping your operation running smoothly.
• ACCURATE TIME CONTROL AND DISPLAY: Built-in real time clock with changeable NTP automatic Internet time setting, automatic Day Light Savings Time and leap year correction or pull the time from your own NTP server • EASY TO USE: With the built-in remote function and BellScheduler desk app, you can manage multiple Netbell devices in different buildings from one simple interface without going through the firewall, it eliminates the need for wiring and control systems
- Netbell-K-M2
• 10M/100M RJ45 Internet interface with connection and activity LEDs
• Input Power: 12VAC
• Bell: 6" Inch 12 Volt DC/Die Cast Aluminum Enclosure, Volume: >= 86Db, IP24 Rated
• Enclosure: ABS, IP67 /150mm x 150mm x 90mm (Mounting hardware supplied)
• Accessories: 3 Meters Power Cable/3 Meters RJ45 Network Cable/3 Meters Input Cable
• External Bell Outputs: Dry contact, 1-Form-A relays 110/220 10A
• On board temperature sensor and input voltage sensor
• Working Temperature from 0 to +70 Celsius
• Storage Temperature from -40 to +125 Celsius
• Humidity from 10% to 80% non-condensing
• Supported Protocols: HTTP/HTTPS/SMTP/SNTP
Master Clock
• Type: Digital
• Display: 4-Digit, 7 Segment Red Super Bright LED
• Character Hight: 4" HR/MIN.
• Visibility: 250 Ft. (76.2 METERS)
• Power: 100-240V 50~60Hz (12vdc Switching Transformer)
• Frame: Aluminum (Black Anodized Finished)
• Dimensions: 8.25" x 15.25" x 1.5"in- • Weight: 4.25 lbs.
• Operating Temperature: -17° TO 190° F
• Humidity: 0% To 95% Non-Condensing
• Operating Mode: 12 or 24 Hour Selectable, Accuracy: ±200 milliseconds
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- • COMPACT AND SELF-CONTAINED: Network enabled, all-in-one automatic bell clock system with the
- hardware and software for installation and operation, no extra software or designated computer
- required
• FULLY PROGRAMMABLE: Up to 500 programmable event schedules, each event can be set to a- different duration for different break time, each bell can share the same schedules or add different
- schedules
• ACCURATE TIME CONTROL AND DISPLAY: Built-in real time clock with changeable NTP automatic- Internet time setting, automatic Day Light Savings Time and leap year correction or pull the time from
- your own NTP server
• EASY TO USE: With the built-in remote function and BellScheduler desk app, you can manage multiple- Netbell devices in different buildings from one simple interface without going through the firewall, it
- eliminates the need for wiring and control systems
• DESIGNED, DEVELOPED AND MADE IN USA
|
|
|
|
|
|
|
Perfect for school bells
